From The Architect Behind The Legendary '90s L.A Metal Guitar Tone

Elan Memran / Metalhead Electronics- From Bedroom Level to Center Stage- Same great Sound! Dual Separate Preamp in One Light Weight 50W Head.
SABRE SIGNATURE 50 GUITAR HEAD

Custom Colors Available

Two Amps In One- A Clean Amp And An Overdrive Amp Combined Into a Single 50W Powerhouse

Built-In Reactive Load Box – XLR Out For Silent Stage, Direct Recording, Or Cab-Free Play.

Sound and Video Clip Click Here

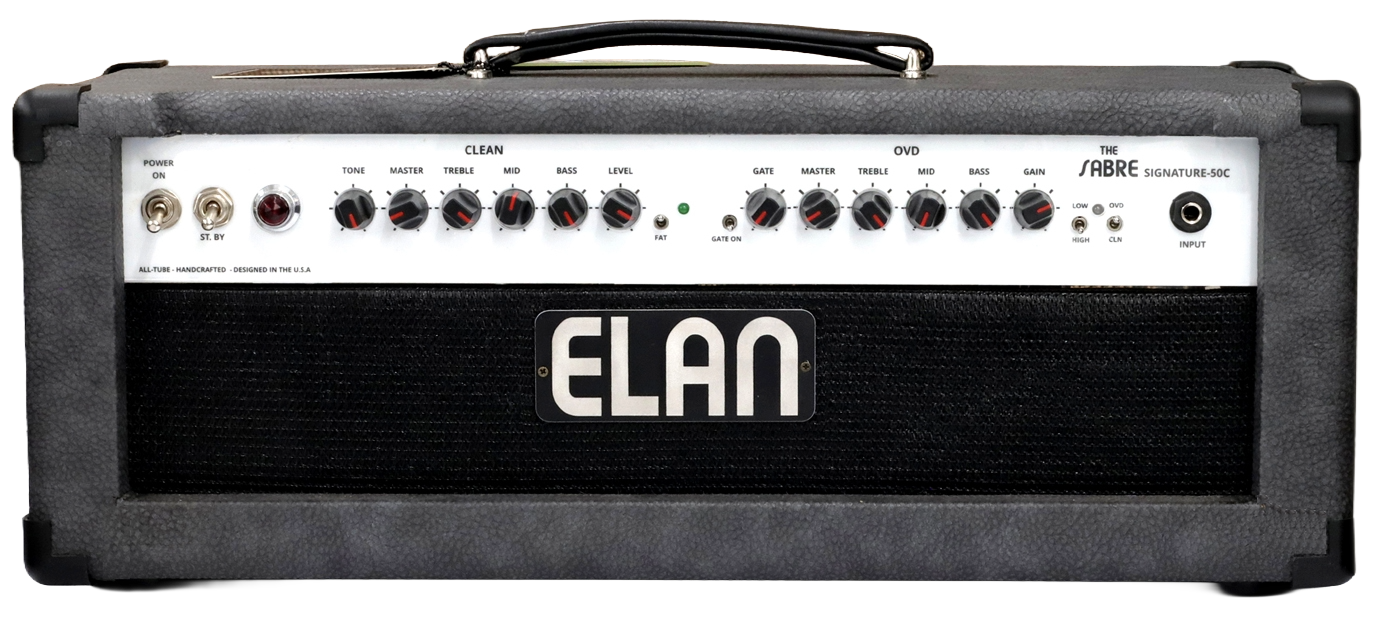

SABRE Signature 50

Handcrafted All-Tube Boutique head

The SABRE Signature 50 is a precision-engineered 50-watt vacuum tube amplifier designed for professional recording and live performance. Developed by Elan Memran,(Metalhead Electronics) this head integrates elite analog tone with modern reactive load technology, providing the harmonic richness of a pushed output stage without the necessity of high-volume sound pressure levels.

Signal Path & Recording Integration



Integrated Reactive Loadbox

Engineered for the modern studio, the SABRE Signature 50 features a built-in Reactive Load and Power Soak. This system allows for 100% silent operation while maintaining the complex impedance relationship between the tubes and the output transformer.

  • Speaker Mute Switch: Safely redirects power to the internal load, protecting the circuit during direct recording.
  • Balanced XLR Interface: Low-impedance output for direct connection to professional mixing consoles and AD converters.
  • Flat Speaker Simulation: Analog circuitry meticulously tuned to provide a transparent, mix-ready signal without digital latency.

Tonal Architecture

Clean Channel Voicing

Designed for absolute transparency and high headroom. The dedicated FAT Switch shifts the low-mid resonance, providing a thicker, more robust profile for single-coil instruments or archival jazz tones.

The Overdrive Section

Offering two discrete gain topologies to suit varied performance requirements:

  • Low Gain Mode: Dynamic, touch-sensitive breakup emphasizing midrange clarity and vintage-inspired grit.
  • High Gain Mode: Featuring the proprietary Elan Memran “Metalhead” circuit, delivering surgical articulation and immense sustain for modern high-saturation applications.
Built-in noise gate:
The high gain section has a controllable Elan`s famous noise reduction system -removes hum and hiss cased by Elan`s high gain mod makes your sound and tone extra tight.
Independent Master Volumes:
Each channel has its own master volume.  this feature making it easy to balance clean and overdrive tones.

lowering your volume does not effect your sound and tone quality and it make it easy for you to play at bedroom level without sacrificing your tone and sustain

Built for Versatility:
Footswitch & Toggle Controls:
Switch channels and modes effortlessly-use the footswitch or front-panel toggles for:
Clean / Overdrive
Low / High Gain
FAT Mode ( toggle switch only )
Noise Reduction On/Off ( toggle switch and sensitivity control only )

Active Tube FX Loop:
Send/Return tube driven loop for pure warm signal integration with your pedals-preserves your tone’s integrity.
Compatible with 4, 8, and 16-ohm cabinets for any rig.

Flat Speaker Simulation Circuit:
Use the direct balanced output for silent practice or recording- no speaker cabinet required. ( as long as the speaker on/off is at OFF position!

Proprietary Active Noise Reduction

Equipped with Elan’s signature noise gate, the high-gain section remains incredibly quiet. This controllable system filters out thermal hiss and external interference while preserving the natural envelope and decay of your performance.

Technical Specifications

Core Power & Physical Specs

  • Power Output: 50 Watts RMS
  • Chassis Weight: About 21 lbs (10 kg)
  • Build: Handcrafted, all-tube boutique engineering by Elan Memran (Metalhead Electronics).

Tube Complement

  • Preamp Tubes: 7 x 12AX7
  • Power Amp Tubes: 2 x 6L6GC (Matched pair)

Control Interface & Features

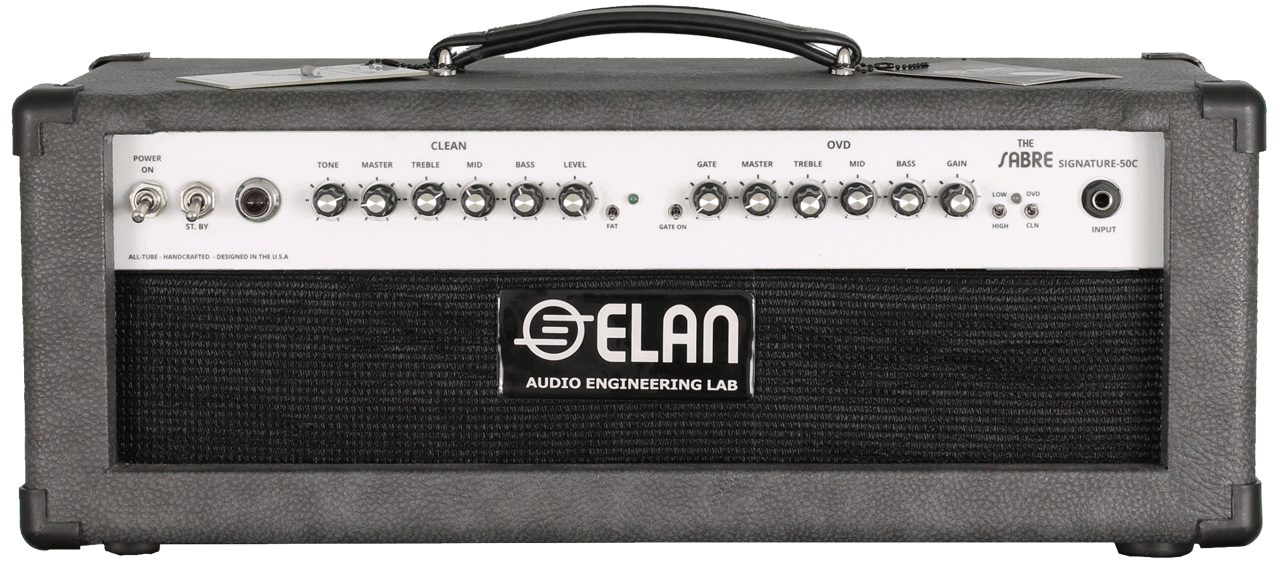

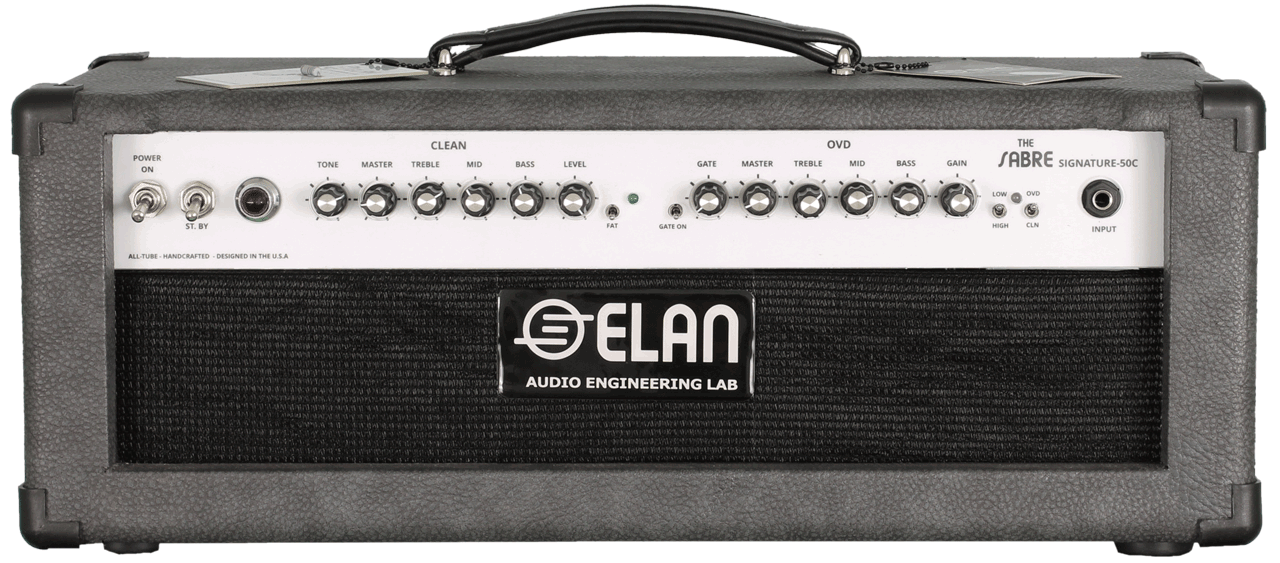

Front Panel Controls

  • Dual-Engine Architecture: Completely independent Clean and Overdrive signal paths.
  • Per-Channel Controls: Independent Gain, Bass, Mid, Treble, and Master Volume for both
  • Presence Note: No global presence control; high-frequency response is managed inherently via the individual channel tone networks.
  • Channel Voicing Toggles:
    • Clean Channel: Includes a dedicated FAT Switch (shifts low-mid resonance for thicker single-coil or jazz tones).
    • Overdrive Channel: Features two discrete gain topologies via a Low / High Gain
      • Low Gain: Touch-sensitive, vintage-style breakup with midrange clarity.
      • High Gain: The proprietary Elan “Metalhead Electronics” high-saturation circuit.
    • Noise Reduction System: Built-in, controllable proprietary active noise gate on the high-gain section (includes an On/Off toggle and sensitivity threshold dial to filter hiss/hum).

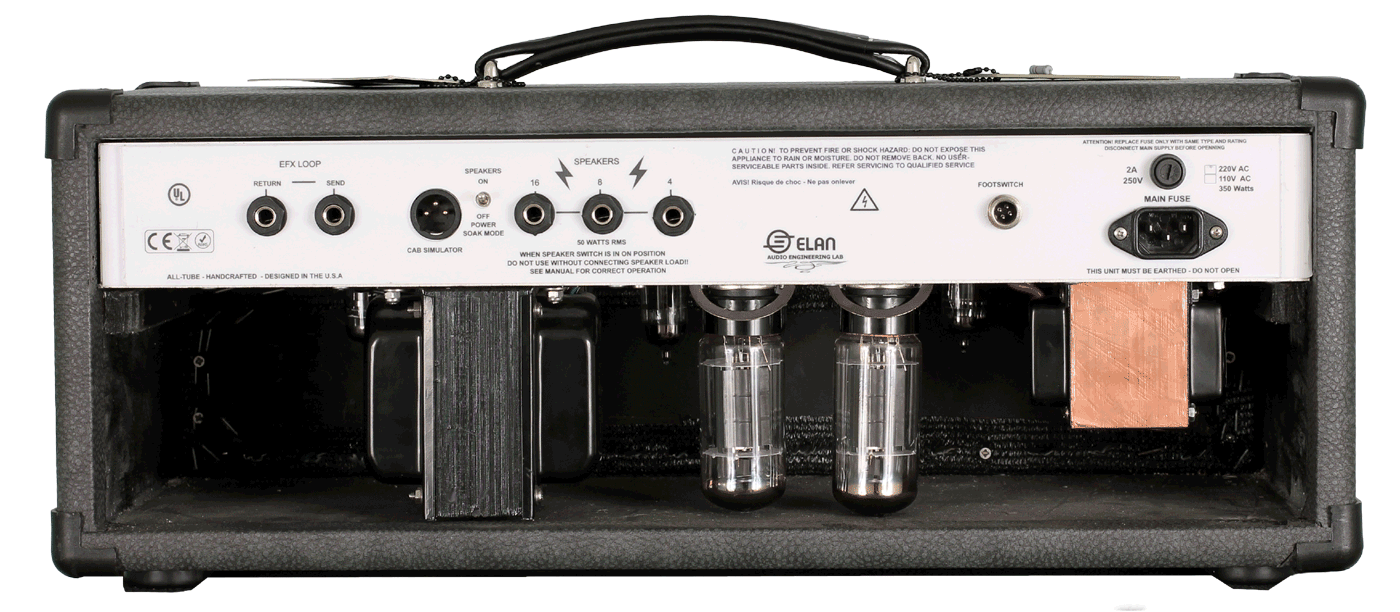

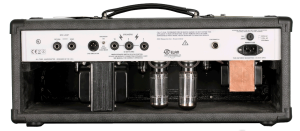

Rear Panel Controls & Routing

  • Integrated Reactive Loadbox: Built-in Power Soak and Speaker Mute On/Off Switch. Safely handles the tube power section for 100% silent recording without a cabinet attached.
  • Cabinet Outputs: Selectable output impedance (4, 8, or 16 Ohms).
  • Direct Out: Balanced XLR Interface featuring a Flat Reactive Speaker Simulation Circuit (fully analog, zero-latency direct-to-DAW or front-of-house tracking).
  • Effects Loop: Active, tube-driven Series FX Loop (Send/Return).
  • Footswitch Jack: Allows hand free switching for Clean/Overdrive and Low/High Gain modes.

Control Interface

Front Panel: Independent Master Volumes, Gain, Bass, Mid, Treble, and Tone controls for the Clean channel. FAT switch and High/Low Gain mode toggles.

Rear Panel: Speaker Load On/Off, Balanced XLR Out, Impedance Selector, and Tube-Driven FX Loop.



    HANDCRAFTED- CREATED TO INSPIRE AND IGNITE CREATIVITY!
